Solar tracker systems for India: dual-axis, single-axis and retrofit
Chennai-based design and manufacture of solar trackers with our own BLDC linear actuators, motors and controllers.
Dual axis solar tracker systems from Chennai
Solar trackers move panels to follow the sun. Our solar tracker solution includes a remote control system for dual-axis trackers, and we also retrofit tracking to existing installations.
- Dual-axis solar tracker with remote control
- Single-axis option
- Retrofit for existing fixed-panel installations
- BLDC solar tracker actuator, motor and controller from our own range
What a solar tracker actuator does
A solar tracker tilts or rotates the panel table through the day. In many tracker designs a linear actuator does that work: it extends and retracts to push the table to the required angle. It moves under load every day and works outdoors, so its load rating, sealing and motor type matter.
Dreamfusion builds the solar tracker actuator, the BLDC motor and the controller itself. That lets us supply the whole drive, or only the actuator if you already have a tracker design. Read the full linear actuator specifications, or see our BLDC motors and controllers.
- 24 V, 240 W BLDC motor with 3 Hall sensors
- 7000 N dynamic load capacity
- IP65 sealed aluminium profile tube housing
- Two built-in limit switches
- Operating temperature -10 °C to 55 °C
| Specification | DF-LA-SL650 | DF-LA-SL250 |
|---|---|---|
| Stroke length | 635 mm | 250 mm |
| Dynamic load | 7000 N | 7000 N |
| Speed, free / full load | 6 / 4 mm/s | 6 / 4 mm/s |
| Motor | BLDC 24 V 240 W | BLDC 24 V 240 W |
| Torque at full load | 1.2 Nm | 1.2 Nm |
| IP class | IP65 | IP65 |
Static load, duty cycle, weight and cable length are confirmed in the quotation.

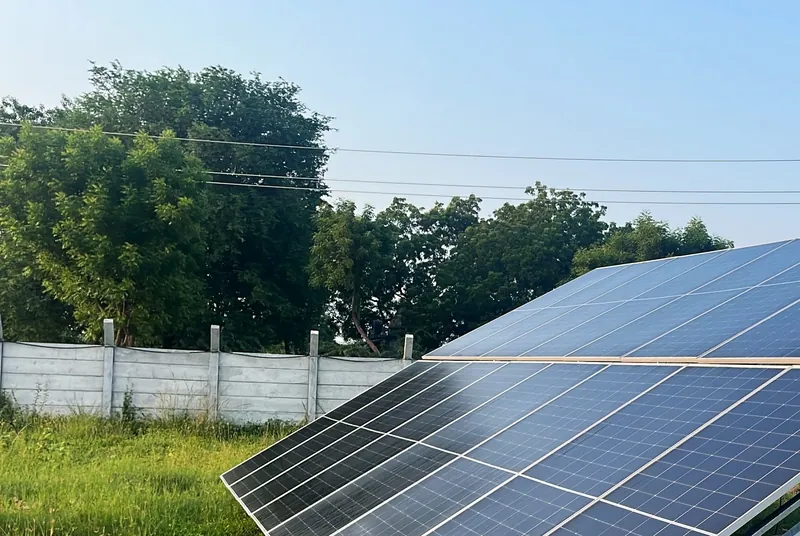

Our solar experience

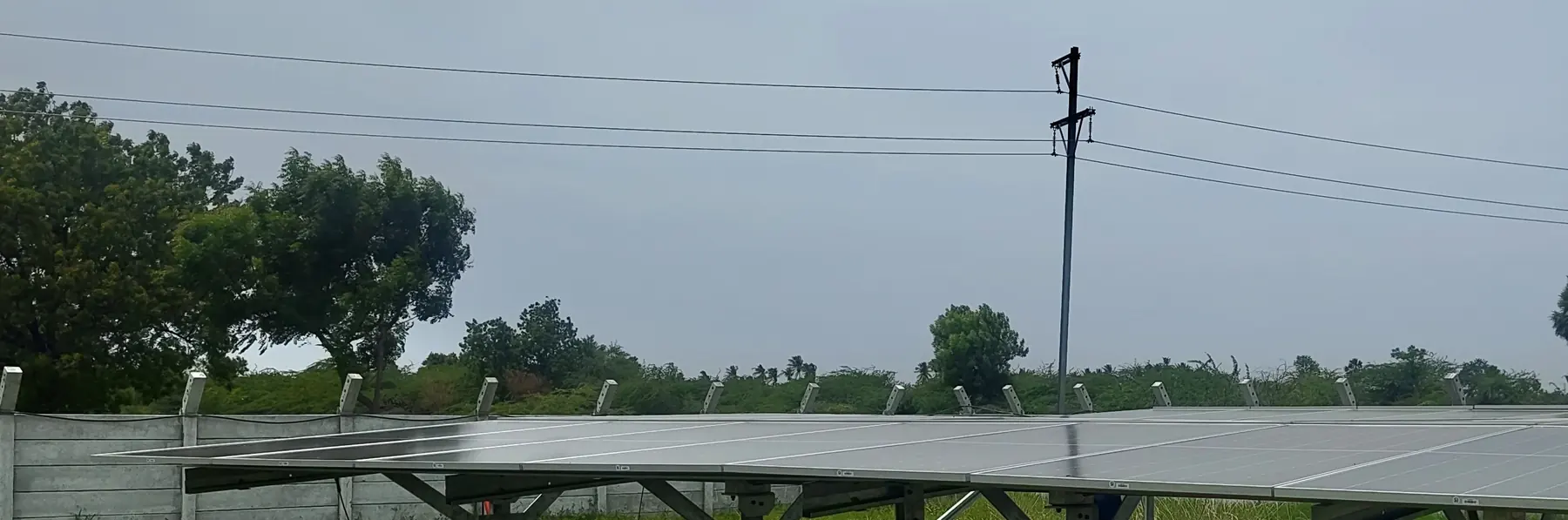

Linear actuators for solar trackers, installed
A solar tracker actuator works outdoors every day. Ours use a sealed IP65 aluminium tube and a brushless motor.
Solar inverters
Solar inverters are planned. Contact us if you would like to be informed when they are available.
Need the actuator on its own?
Our 7000 N IP65 BLDC linear actuators are available for your own tracker design. See OEM and export for custom strokes and interfaces.
What to send for a solar tracker quotation
- Site location and project size
- Tracker type: dual-axis, single-axis or retrofit of an existing installation
- Actuator requirements: stroke, load and voltage
- Destination country, if you need export shipping
Solar tracker questions, answered
What is a solar tracker?
A solar tracker is a mount that moves solar panels to follow the sun during the day, so the panels face the sun more directly than a fixed installation does.
What types of solar tracker system does Dreamfusion offer?
Dual-axis solar trackers with a remote control system, a single-axis option, and retrofit tracking for existing fixed-panel installations. Tell us your site and scale and we will confirm a suitable configuration.
Which actuator is used in your solar tracker?
Our tracker solutions use Dreamfusion BLDC linear actuators, motors and controllers from our own range. The standard actuators are the DF-LA-SL650 (635 mm stroke) and DF-LA-SL250 (250 mm stroke), both 24 V, 7000 N dynamic load and IP65.
Can I buy the solar tracker actuator without the tracker?
Yes. Our 7000 N IP65 BLDC linear actuators are available for your own tracker design. Stroke, end fittings, cable and controller interface can be customised for OEM projects.
Where are your solar trackers and actuators made?
They are designed and manufactured in Chennai, Tamil Nadu, India.
How do I get a solar tracker quotation?
Message us on WhatsApp at +91 89391 55440 or email sales@dreamfusiontech.com with the site location, project size and tracker type.
Planning a solar tracker project?
Tell us the site, scale and tracker type. We reply with options.
