24 V BLDC linear actuators: 7000 N, IP65, 635 mm and 250 mm stroke
Two standard heavy duty electric linear actuator models, the SL650 and SL250, manufactured in Chennai, India and exported to OEMs and distributors. Customised versions available for OEM projects.
DF-LA-SL650, 635 mm stroke
The long-stroke 7000 N BLDC linear actuator. Suitable for solar tracker actuators, gates, vents and machine automation that need a long travel with a sealed, maintenance-friendly drive.
- Dynamic load 7000 N, 635 mm stroke
- 24 V, 240 W BLDC motor with 3 Hall sensors
- IP65, extruded aluminium profile tube
- 2 built-in limit switches
- M14 rod end bearing at both ends
| Model | DF-LA-SL650 |
|---|---|
| Stroke length | 635 mm |
| Installed length | 950 mm |
| Front / rear end mounting | M14 rod end bearing |
| Dynamic load capacity | 7000 N |
| Free-load speed | 6 mm/s |
| Full-load speed | 4 mm/s |
| Housing | Extruded aluminium profile tube 6063, silver grey |
| IP class | IP65 |
| Motor | BLDC, 24 V, 240 W |
| Motor torque | 1.2 Nm at full load |
| Motor operating current | No load 1.8 A; full load 3 A |
| Full-load current | ≤ 10 A |
| Motor sensors | Hall sensors, 3 nos |
| Motor controller | Exclusive design |
| Limit switches | 2, built in |
| Motor cable | OD 11.5 mm, 8-core Cu: 5 communication + 3 power, halogen free |
| Motor operating temperature | -10 °C to 65 °C |
| Operating temperature | -10 °C to 55 °C |
| Special grease | Synthetic paste base |
Values are taken from the model datasheet. Static load, duty cycle, weight and cable length are not stated there and are confirmed in the quotation.
DF-LA-SL250, 250 mm stroke
The compact-stroke version of the same 7000 N IP65 BLDC platform, with DIA14 square connectors and an adjustable hole for flexible mounting.
- Dynamic load 7000 N, 250 mm stroke
- 24 V, 240 W BLDC motor with 3 Hall sensors
- IP65, extruded aluminium profile tube
- 2 built-in limit switches
- DIA14 square connector, adjustable hole
| Model | DF-LA-SL250 |
|---|---|
| Stroke length | 250 mm |
| Front / rear end mounting | DIA14 square connector, adjustable hole |
| Dynamic load capacity | 7000 N |
| Free-load speed | 6 mm/s |
| Full-load speed | 4 mm/s |
| Housing | Extruded aluminium profile tube 6063, silver grey |
| IP class | IP65 |
| Motor | BLDC, 24 V, 240 W |
| Motor torque | 1.2 Nm at full load |
| Motor operating current | No load 1.8 A; full load 3 A |
| Full-load current | ≤ 10 A |
| Motor sensors | Hall sensors, 3 nos |
| Motor controller | Exclusive design |
| Limit switches | 2, built in |
| Motor cable | OD 11.5 mm, 8-core Cu: 5 communication + 3 power, halogen free |
| Motor operating temperature | -10 °C to 65 °C |
| Operating temperature | -10 °C to 55 °C |
| Special grease | Synthetic paste base |
Values are taken from the model datasheet. Static load, duty cycle, weight and cable length are not stated there and are confirmed in the quotation. The SL250 image is illustrative.
A BLDC linear actuator designed for outdoor duty
Brushless drive, sealed housing and integrated electronics reduce wear and maintenance.
BLDC motor
24 V, 240 W brushless motor with 3 Hall sensors and a controller of our own exclusive design.
IP65 housing
Extruded aluminium profile tube 6063 in silver grey, with synthetic paste grease.
Built-in limit switches
Two limit switches are built in. Halogen free 8-core cable, 5 communication and 3 power.
Built in-house
Our actuators are assembled in Chennai. Ask for a custom stroke, end fitting or cable and we will confirm what is possible in the quotation.
Linear actuator manufacturer and exporter in Chennai, India
Dreamfusion Technologies designs and builds BLDC linear actuators in Chennai, Tamil Nadu. The two standard models share one platform: a 24 V, 240 W brushless motor, 7000 N dynamic load capacity and an IP65 aluminium profile tube housing. They differ in stroke: the DF-LA-SL650 has 635 mm and the DF-LA-SL250 has 250 mm.
We supply OEMs and distributors in India and abroad. If a standard stroke does not fit, ask about an OEM version with a different stroke, end fitting, cable or controller interface. Typical uses are solar tracker actuators, gates, vents and machine automation. Lead time, minimum order quantity and pricing are confirmed in the quotation, and shipping terms are on the shipping and warranty page. Both models carry a 1 year warranty against manufacturing defects.
Datasheets
DF-LA-SL650 datasheet
PDF, 2 pages, 1 MB. Rev A.2, Oct 2026. Specifications, 2D drawing, wiring and ordering information.
DF-LA-SL250 datasheet
PDF, 2 pages, 1 MB. Rev A.2, Oct 2026. Specifications, 2D drawing, wiring and ordering information.
Linear actuator questions, answered
What is the load capacity of the Dreamfusion linear actuators?
Both standard models, DF-LA-SL650 and DF-LA-SL250, are rated for a dynamic load capacity of 7000 N (about 700 kgf) according to their datasheets. Static load is confirmed in the quotation.
What stroke lengths are available?
The DF-LA-SL650 has a stroke of 635 mm and the DF-LA-SL250 has a stroke of 250 mm. Other strokes can be requested for OEM projects.
Are your actuators BLDC (brushless) linear actuators?
Yes. Both models use a 24 V, 240 W BLDC motor with 3 Hall sensors and a controller of Dreamfusion's own exclusive design.
What is the IP rating of the actuator?
Both models are rated IP65 and use an extruded aluminium profile tube (6063) housing in silver grey. The operating temperature range is -10 °C to 55 °C.
What speed does the actuator run at?
Free-load speed is 6 mm/s and full-load speed is 4 mm/s, as stated on the datasheets.
Does the actuator include limit switches?
Yes. Two limit switches are built in.

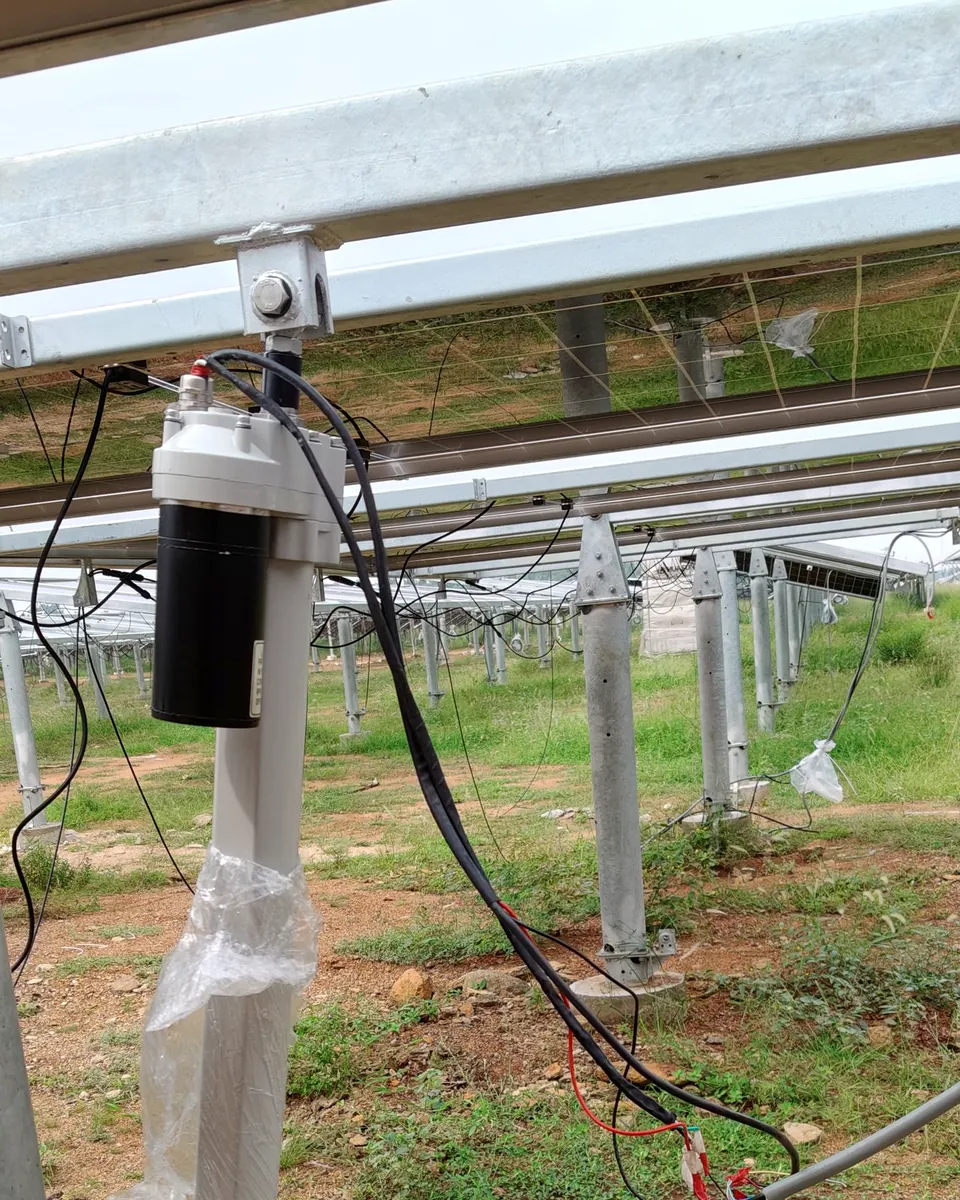

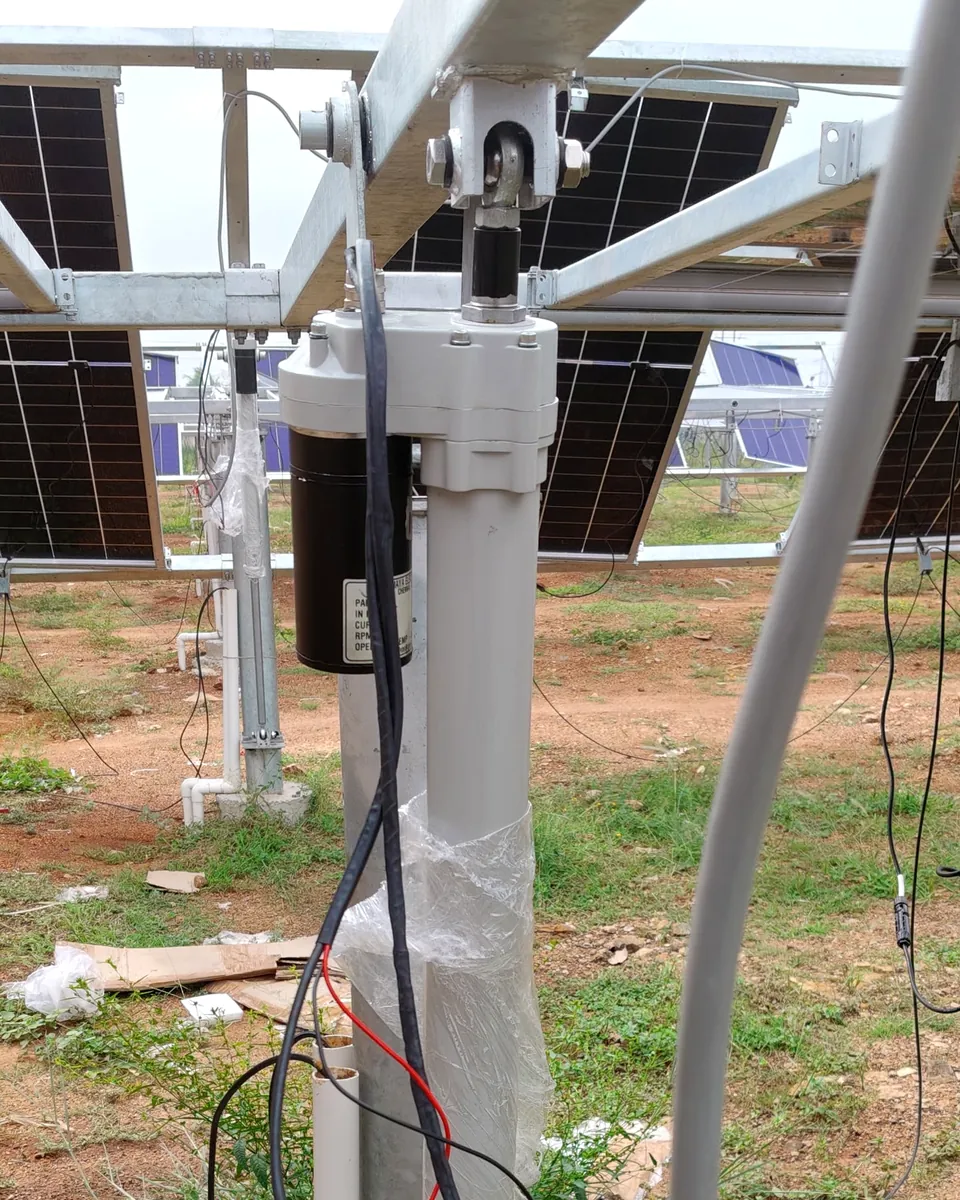

Is the actuator suitable for a solar tracker?
Dreamfusion actuators are used on solar tracker structures. See our solar tracker systems page for the field installations and our tracker offering.
Can you customise the actuator for my product?
Yes. Stroke length, mounting and end fittings, cable length and connector, and the controller interface can be customised. See custom OEM actuators.
Do you export linear actuators from India?
We welcome enquiries from OEMs and distributors worldwide. Send your destination country so we can prepare shipping terms. Lead times, minimum order quantities and pricing are confirmed in the quotation.
What is the warranty on the actuators?
Dreamfusion actuators carry a 1 year warranty against manufacturing defects. See Shipping & Warranty for what is and is not covered.
What is the motor torque?
The 24 V, 240 W BLDC motor delivers 1.2 Nm at full load, as stated on the datasheets.
How do I get a quotation or a datasheet?
Message us on WhatsApp at +91 89391 55440 or email sales@dreamfusiontech.com. The datasheets for both models can be downloaded from this page.
Request a quotation for your actuator
Share your stroke, load and voltage. We recommend the right model or a custom build.
